MGS METAL BOND CUTOFF BLADE - STEEL CENTER DIAMOND IN PERIPHERY
METALLURGIC SERIES DIAMOND CUTOFF BLADE      THESE CUTOFF BLADES ARE OFFERED IN BOTH HIGH AND LOW CONCENTRATIONS.  IT IS SUGGESTED THAT ALL METALLURGICAL BLADES BE USED WITH COOLANT AT THE POINT OF CONTACT AND DRESSED QUITE FREQUENTLY FOR BEST RESULTS.
H HIGH CONCENTRATION    FOR REDUCED CUTTING TIME OF    FERROUS, COBALT, AND NICKEL    BASED MATERIAL. ALSO EXCELENT    FOR CUTTING ROCK, REFACTORY,    MINERAL, CEAMIC, GLASS, CEMENT,    CONCRETE, AND OTHER NON-METALIC MATERIALS.		L LOW CONCENTRATION     DESIGNED FOR CUTTING BRITTLE     MATERIALS THAT WOULD BE FOUND     WITH CERTAIN GLASSES AND CERAMICS.
RIM TOLERANCE = (+.002/-.001) DIAMOND GRIT = 180 FOR FASTER CUTTING; USE COARSER GRIT WITH SLOTS-REQUEST QUOTE. CBN WAFERING BLADES ARE AVAILABLE-REQUEST QUOTE.

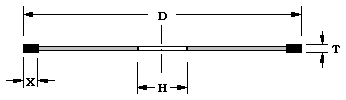

CATALOG NUMBER	OUTSIDE DIAMETER D	WHEEL THICKNESS T	ARBOR DIAMETER H	DIAMOND DEPTH X	PRICE
MGS-01L MGS-01H	4	.012	1/2	1/16   1/8	$63.60 $86.40
MGS-02L MGS-02H	4	.015	1/2	1/16   1/8	$63.60 $80.40
MGS-03L MGS-03H	5	.015	1/2	1/16   1/8	$74.40 $86.40
MGS-04L MGS-04H	5	.018	1/2	1/16   1/8	$75.60 $87.40
MGS-05L MGS-05H	5	.020	1/2	1/16   1/8	$76.80 $88.80
MGS-06L MGS-06H	5	.025	1/2	1/16   1/8	$78.00 $90.00
MGS-07L MGS-07H	6	.020	1/2	1/16   1/8	$87.60 $96.00
MGS-08L MGS-08H	6	.025	1/2	1/16   1/8	$90.00 $98.40
MGS-09L MGS-09H	7	.025	1/2	1/16   1/8	$91.20 $102.00
MGS-010L MGS-010H	7	.030	1/2	1/16   1/8	$93.60 $104.40
